OTA ModesAuto Update

Auto Update

This feature is only available in ElegantOTA Pro

In Auto mode the device looks after itself. You compile in an update channel - a URL pointing at a small JSON manifest describing the latest release. The device fetches it on a schedule, compares the advertised version against its own, and can install what it finds - without anyone opening the portal.

This is the difference between updating devices you can reach and updating a fleet you cannot.

The manifest

Host a file like this anywhere the device can reach over HTTP or HTTPS - an S3 bucket, a GitHub release asset, your own server:

{
  "version": "1.2.0",
  "url": "https://example.com/firmware/my-device-1.2.0.bin",
  "md5": "6f5902ac237024bdd0c176cb93063dc4",
  "notes": "Reconnects to Wi-Fi after a router reboot"
}

Unknown fields are ignored, so you can keep your own bookkeeping in the same file.

An update channel carries firmware. There is no field selecting a target, because a filesystem image has no version of its own for the device to compare against - push one with File or Direct Download, where you choose the target yourself.

Setting it up

ElegantOTA.setFWVersion("1.0.0");

ElegantOTA.setUpdateURL("https://example.com/firmware/latest.json");

ElegantOTA.setCheckInterval(6 * 60 * 60 * 1000UL);   // every 6 hours

ElegantOTA.setAutoInstall(true);    // install as soon as something newer appears

How versions are compared

The numeric parts of the version are compared field by field, so 1.10.0 correctly beats 1.9.4. A leading v is ignored. A pre-release suffix after a hyphen sorts below the same version without one.

Versions with no digits at all - build hashes, code names - count as newer whenever they simply differ from what is running.

Reacting to a new build

onUpdateAvailable fires whenever a check finds something newer. This is where you decide what a good moment looks like for your product: a machine that is idle, a battery that is charged, a user who has agreed.

void onUpdateAvailable(const char* version, const char* notes) {
  Serial.printf("Version %s is available\n", version);
  if (strlen(notes)) Serial.println(notes);

  if (machineIsIdle()) {
    ElegantOTA.installUpdate();
  }
}

void setup() {
  // ...
  ElegantOTA.begin(&server);
  ElegantOTA.onUpdateAvailable(onUpdateAvailable);
}

From then on the ordinary callbacks take over - onStart, onProgress, onEnd - and ElegantOTA.source() reports OTA_SOURCE_CHANNEL.

Checking on demand

setCheckInterval() starts its clock the moment you call it, so the first scheduled check happens one interval later. Most projects want one at boot as well:

ElegantOTA.begin(&server);
ElegantOTA.checkForUpdate();    // ask once, now

Both checkForUpdate() and installUpdate() queue work and return straight away. The actual fetching happens inside ElegantOTA.loop(), so make sure that is being called.

Reference

void setUpdateURL(const char * url);        // the manifest URL
const char * getUpdateURL();

void setCheckInterval(uint32_t ms);         // 0 disables scheduled checks
void setAutoInstall(bool enable);           // install without being asked
bool checkAutoInstall();

bool checkForUpdate();                      // queue a check now
bool installUpdate();                       // install what the last check found

bool updateAvailable();                     // is something waiting?
const char * availableVersion();            // its version, or ""
const char * availableNotes();              // its notes, or ""

void onUpdateAvailable(std::function<void(const char * version,
                                          const char * notes)> callable);

Turning it off

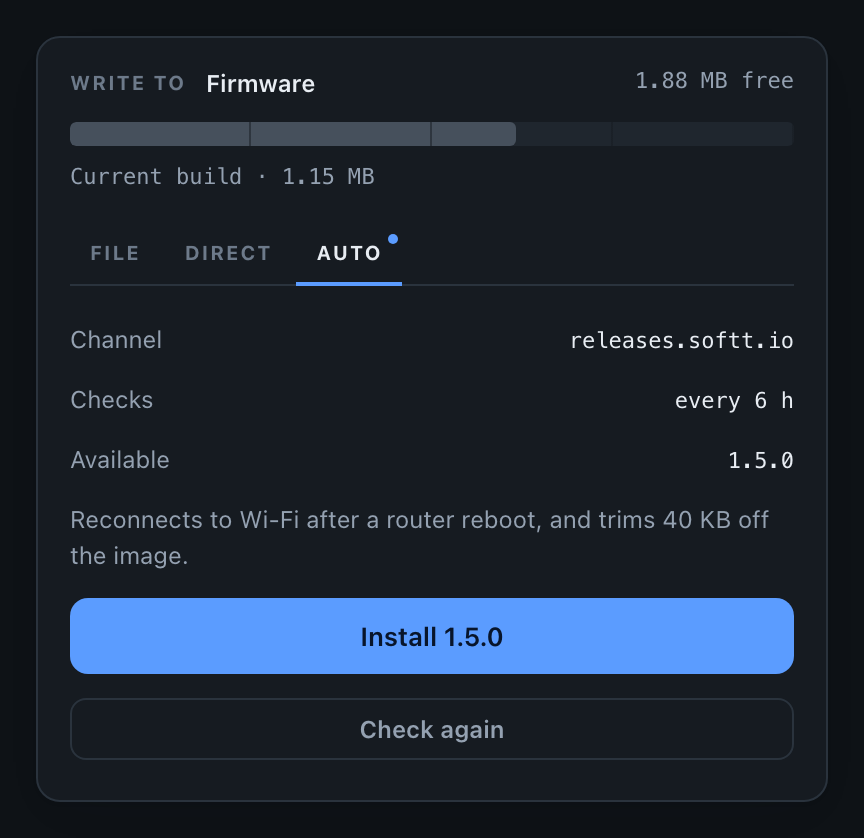

All three modes are enabled by default. Turning this one off stops scheduled checks, removes the Auto tab from the portal, and makes checkForUpdate() and installUpdate() refuse:

ElegantOTA.setAutoMode(false);

Useful for pausing automatic updates while something important is running, and turning them back on afterwards:

ElegantOTA.setAutoMode(!machineIsBusy());

This is separate from simply not configuring a channel. Without setUpdateURL() there is nothing to check; with setAutoMode(false) there is a channel that is deliberately not being checked.

if (ElegantOTA.checkAutoMode() == false) {
    Serial.println("Automatic updates are paused");
}

HTTPS

The manifest and the firmware are fetched by the same client, so setCACert() covers both. See Direct Download for how to pin a root certificate - and why you should.

The other modes

• File - write a .bin from your computer, available in Lite and Pro
• Direct Download - hand the device a URL and let it fetch that one build

Direct Download Authentication
